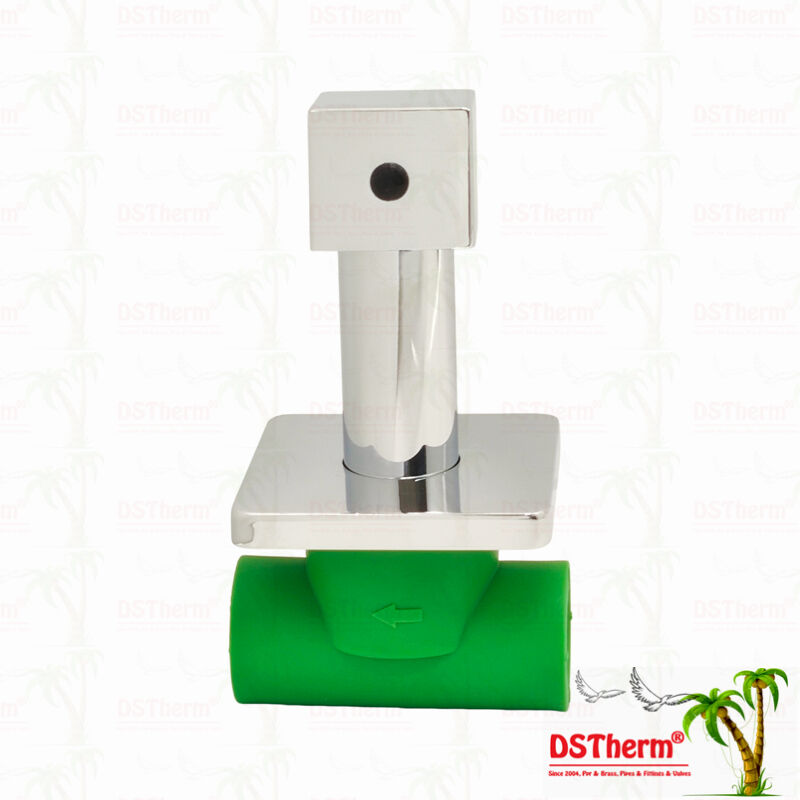

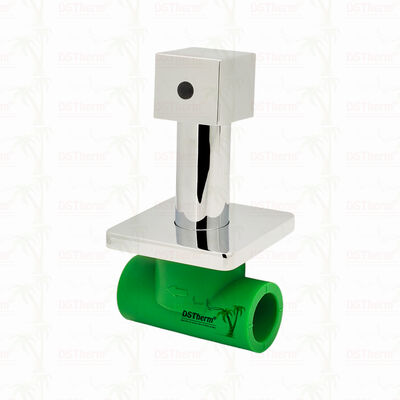

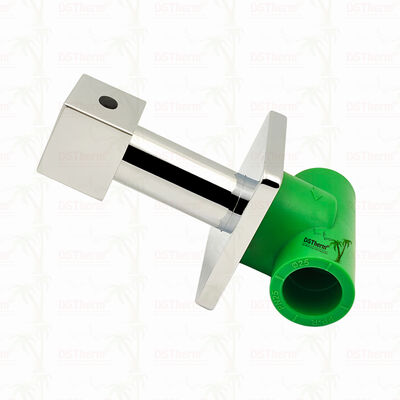

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm

Large Image : PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm

Product Details:

Place of Origin:	Zhejiang China
Brand Name:	DSTHERM/Customized Logo
Certification:	ISO 15784 /DIN/CW617N
Model Number:	20-32mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton / Pallet
Delivery Time:	35 days
Payment Terms:	L/C,T/T
Supply Ability:	20days /20 feet container , 35days/40 HQ

Contact Now

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm

Description

Product Name:	PPR Stop Valve With Cube Handle	Color:	Grey,Green, Black,as Required
Size:	20-32mm	Process:	Injection Molding
Material:	PPR+Brass Cartridge+Chrome Plated	Packaging Details:	Standard Exported Packing Or As Customer Request
Applications:	Hot & Cold Water System	Delivery Time:	Shipped In 35 Days After Payment

Specification

PPR Stop Valve With Brass Cartridge	Size
	20mm
	25mm
	32mm

We have Stop Valve with specifications ranging from 20mm to 32mm. You can also customize different specifications, color and materials.

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm 1

Main Components of a Stop Valve

Valve Body
Valve Bonnet
Valve Disc
Valve Seat
Valve Stem
Handwheel
Packing

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm 2

Stop Valve vs. Gate Valve – Comparison

	Stop Valve	Gate Valve
Main Function	Shut-off and throttling* / regulating*	Primarily for full open or full close, not for throttling
Flow Path Shape	Tortuous, S-shaped flow path	Straight, unobstructed flow passage
Flow Resistance	High (large pressure drop)	Low (small pressure drop)
Installation Direction	Directional (media must enter from below and exit above)	Non-directional (can be installed in either flow direction)
Appearance	Longer in length and shorter in height* for same nominal size*	Shorter in length and taller in height* for same nominal size*
Applicable Size	Mainly used for small bore sizes* (e.g., DN ≤ 50 mm)*	Commonly used for large bore sizes* (e.g., DN ≥ 50 mm)*

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm 3

Applications

Residential and commercial cold and hot water supply systems (e.g., kitchens, bathrooms, branch lines for local shut‑off).
Heating systems – radiators, floor heating, and central heating branch circuits (suitable for temperatures up to 70–95 °C).
Solar water heaters and heat pump water heaters – for hot water circulation control.
Air‑conditioning – chilled water and hot water piping in HVAC systems.
Industrial and agricultural water – general process water, cooling water, and irrigation lines, especially where corrosion resistance is needed.
Compressed air (oil‑free) and certain non‑aggressive fluid services.

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm 4

Our advantages

1). Over 20 Years' Experience in production

2). Accept OEM Order

3). ISO9001 approved

4). We use All New raw material in products

5). Sufficient products with complete specifications for your choice

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm 5

We will be your better choice!
