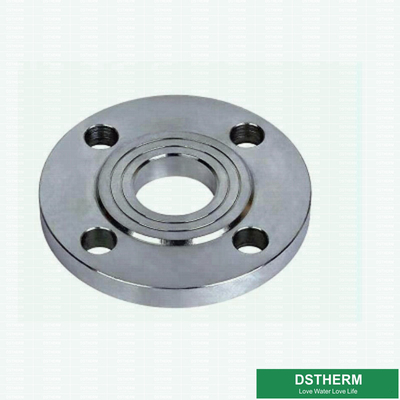

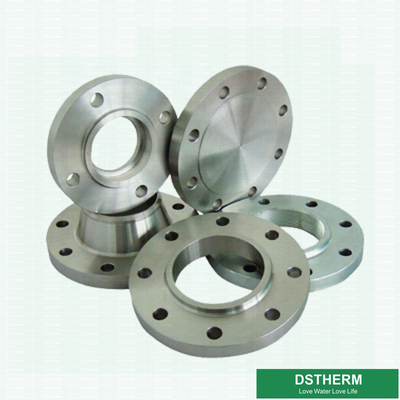

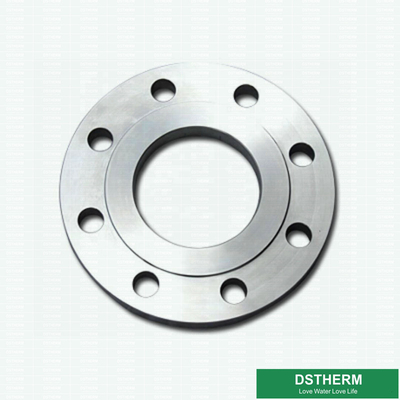

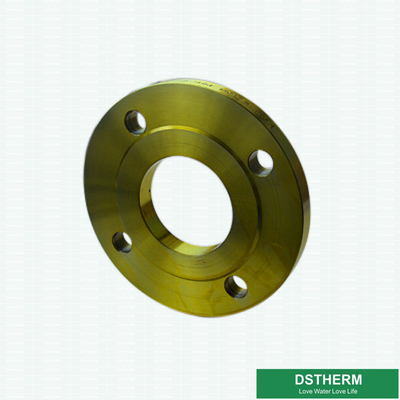

Steel Flange PPR Flange Core Heat Resistant Anti Rusty 20 - 160mm

Ppr Steel Flange Anti Rusty Flange PPR Flange Core Heat Resistant 20 - 160mm Convenient Installation



We have the sizes from 40mm to 160mm for ppr pipes and fittings.





Below are the standards which we can do.







PPR Pipe Fittings PPR Flange Core ISO9001 DIN8077/8078 Colour OEM size 40-160mm



PPR fitting manufactured from Polypropylene Random Copolymer raw material. The most important feature of PPR that distinguishes it from the others is that it could also be used in hot water systems besides being used in sanitary networks.



PP-R fitting is light, anti corrosive, anti-scaling and durable as ordinary plastic pipes and also has following main features:

1. Non-toxic and hygienic. Raw materials for PP-R fitting only contain carbon and hydrogen elements, and no harmful and toxic elements exist. Thus, PP-R fitting is hygienic and reliable. It is applicable not only to cold and hot water pipeline, but also to pure drinking water system.

2. Thermal insulating and energy saving. The thermal conductivity of the PP-R fitting is 0.21w/mk, which is only 1/200 of that of steels'.

3. Heat resistant. The vicat softening point of the PP-R fitting is 131.5 °C . The highest working temperature is up to 95 °C . It can meet the application requirements of hot water system in building water-supply and drainage standard.

4. Long service life. Under the condition that the working temperature is 70 °C and the working pressure is 1.OMP, the PP-R fittings' service life is up to over 50 years; the service life may be up to over 100 years under normal temperature.

5. Easy to install and reliable to connected. The PP-R has good weld ability, and the pipe and fittings may be connected through hot melting and electric melting. It is convenient to install and has reliable joints. The connection parts are tougher than the pipe itself.

6. There are bar code label on the tube, can easy track product information.



Descriptions of coupling

Name	pp-r pipe fittings PPR Coupling PPR Socket
Color	green, white, gray, blue
Connection	socket fusion joint, electro fusion joint or transition joint
Material	polypropylene
Pressure Rating	1.0Mpa,1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
Service life	50 years
Size	20mm-160mm



Permissible Working Pressure And Longevity

	Working pressure(bar)	Temperature ℃	Working year(H/Y)
Cold water	0 to10 transient	To 25	8760
Hot water	0 to10 transient	To 60	8710
		To 80	50



For Water Installations

Temperature	Service life	Safety-factor=1.5
		SDR 11	SDR 9	SDR7.4	SDR 6
		Nominal Pressere
		PN10	PN12.5	PN16	PN20
		Permissible Working Pressure
20℃	1	15.0	18.9	23.8	30.0
	10	13.7	17.3	21.7	27.2
	50	12.9	15.9	20.4	25.7
40℃	1	10.8	13.6	17.1	21.2
	10	9.2	12.4	16.0	20.2
	50	9.2	11.5	14.5	18.8
50℃	1	9.2	10.8	14.5	18.3
	10	8.2	10.5	13.1	16.5
	50	7.7	9.8	12.2	15.4
60℃	1	/	/	12.2	15.4
	10	/	/	11.0	13.8
	50	/	/	10.1	12.7
75℃	1	/	/	9.9	12.3
	10	/	/	7.5	9.3
	25	/	/	6.1	7.5

SDR=Standard Dimension Ratio(diameter/wall thickness)
SDR=d/s(S=Pope series index from ISO 4065)





Feature

1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years





Application of ppr pipe and fittings

1. The civil-use and industrial-use construction inner cold/warm water and water-giving systems;



2. Public sites, (such as schools, hospitals), gyms(such as swimming pools, playground);



3. Drinking water systems and food industry management system'



4. Garden and warm rooms irrigating systems;



5. Traditional heat-giving/ heat-absorbing systems;



6. Central air-conditioner system;



7. Chemical flowing transferring pipe system.



Our advantages

1). 15 Years' Experience in production

2). accept OEM Order

3). ISO9001 approved

4). We use All New raw material in products

5). Sufficient products with complete specifications for your choice



Extra Introduction: Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Ppr Pipe Introduction: Polypropylene Random plastic type C pipe.



1. What is Ppr Pipe? Ppr Pipe means: Polypropylene Random Copolymer plastic type C pipe.
PPR pipe is type c and a straight and rigid cylindrical pipe, made from Polypropylene Random Copolymer plastic raw mateiral, produced through a continuous extrusion process. They are commonly offered in light green, dark green, blue color, orange color, white color, etc... and in outer diameter sizes ranging from 20mm to 315mm making the pipe walls far thicker according to ISO15874 and DIN8077/8088



2. Ppr Pipe Standard:

ISO15874



DIN8077/8078



3. Color: According to different countries and markets, different customers have different request on the colors, so we have customized Colors, such as Green Color, White Color,bulue color, orange color, dark green clor, etc...



4. Package: DSTHERM Brand Package/ We also accept customer customized brand package with custome logo and descriptions.



5.What are the main use of Ppr Pipe and Ppr Fittings?



PPR Pipe has been growing in popularity over the last couple of years, and rightly so. Its durability, ecological, and economic benefits make PPR pipes one of the best in the industry. That is why most industry leaders have turned to PPR pipes for all their needs.



PPR pipes are commonly used in home installations. It is also used in sanitary liquid, alkaline and acidic solutions, compressed air, and transferring water. But what exactly is PPR pipe, and how is it used? We have prepared this comprehensive guide to help you learn everything about PPR pipes.



What is the PPR Pipe?





First things first, so what exactly is the PPR pipe? Also known as Polypropylene Random Copolymer, PPR pipe is a cylindrical and rigid pipe made from PPR. The pipe is produced through a continuous process known as extrusion. These pipes are usually white or green.



Most PPR pipes have a diameter of 20mm to 110mm. This means that the PPR pipe is thicker than its PVC companions. In addition to that, PPR pipes feature a network of fittings, accessories, and parts. These accessories are available for each PPR pipe diameter.



Like all other pipes, PPR pipes also have their unique properties. These properties set it apart from other pipes. Learn more about PPR pipes characteristics below:



Low Thermal Conductivity



The first thing you should about PPR pipes is that they have low thermal conductivity. This means that external temperatures don’t get to the liquid inside the pipe. Likewise, temperature from the liquid does not escape to the external environment. This is why PPR pipes minimize heat loss or heat gain during the transfer of cold and hot fluids. Using PPR pipes guarantees efficiency and reduced costs



Increased Longevity



PPR pipes can serve you for more than 50 years under varying environmental conditions and a wide range of fluids. What is more, PPR pipes can withstand both cold and hot water systems. To help you understand, PPR pipes can handle the pressure and strain of hot water without breaking. Of course, the premise is that the 50-year life span can only be guaranteed under normal use conditions, such as protecting the pipeline under extreme weather.



Ecological and Economic Efficiency



PPR pipes are easy to transport, cut, and join. These pipes are also easy to use and do not need additional chemicals and materials.





What are the Main Uses of PPR Pipe Fittings?

As you have seen earlier, PPR pipes have several economic, ecological, and durability benefits. This is why these pipes are used in a variety of applications. Keep reading to discover the primary uses of PPR pipe fittings below:



PPR pipe fittings are usually used in the construction of cold and hot water systems. The ability of PPR pipes to withstand both hot and cold temperatures without breaking or cracking makes it the best option for cold and hot water systems. Besides, its low thermal conductivity means that the fluids will retain the required temperature.

PPR fittings are the go-to option for discharging chemical fluids, including industrial waste. PPR piping is the ideal pipe fitting for industries due to its ability to withstand strong chemicals and alkaline solutions.

PPR pipe fittings are also used as purified water supply systems. These pipes are durable and can last for more than 50 years. What is more, they do not break or crack easily even under intense conditions.

The PPR pipes are perfect for a building’s heating system. These pipes can be installed inside floors, radiant, wall heating systems. These pipes can withstand all surfaces and conditions, making them the perfect option for all your heating needs.





PP-R Perforated Aluminum Composite pipe Workshop



Ppr Pipe Applications

1) Cold and hot water supply systems for civil and industrial constructions, e.g. in

residential buildings, hospitals, hotels, school and office buildings, ship building

2) Drinking water systems and food industry pipe works

3) Central air conditioning system

4) Irrigating system for gardens and green houses

5) Public and sport facilities such as swimming pools and stadiums

6) For rainwater utilization systems



Ppr Pipe Advantages:

1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.

2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.

3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.

4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.

5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.

6, Long Life: more than 50 years under normal conditions.

7, Recycled and Environment-friendly.



Payment term :LC ,TT .

Delivery time : 20days /20 feet container , 35days/40 HQ

Samples lead time: 3-7 days

MOQ: 100-4000pcs

Package: pcs/polybag, 4 meters/tube or as client's request

Ppr Pipe workshop: Polypropylene Random plastic type C pipe.





Ppr Pipe Raw material R200P : Polypropylene Random plastic type C pipe.





Ppr Pipe Series: Polypropylene Random plastic type C pipe.

Ppr Pipe(20mm-160mm)
PP-RCT Pipe(20mm-110mm)
Ppr UV Pipe(20mm-110mm)
Ppr Fiber Pipe(20mm-110mm)
Ppr Composite Pipe(20mm-110mm)
Ppr-Alu-Ppr(20mm-110mm)
Ppr Aluminum Composite Pipe(20mm-110mm)
Ppr Perforated Aluminum Pipe(20mm-110mm)
Ppr-Fiber-Ppr-UV Pipe(20mm-110mm)
Ppr Nano-Antibacterial Pipe(20mm-110mm)
Ppr Copper pipe(20mm-32mm)






Manufacturing Pipes, Fittings, Valve. (Ppr Pipes,Ppr Fittings,Valves & Brass Fittings,Brass Valves)
With Standard Raw Materials, Supplying Better Quality Products.
1. With 19 years experience, exporting to more than 35 countries.
2. Full Sizes, Sizes : 1/2' to 4' with CW617N & Cu58-3 etc.
3. 200 PCS CNC machines including: Hot Forged Rough Cast Machines+Brass CNC Automatic Machines + Ppr Injection Machines.
4. Customized logo and DSTHERM

We will be your better choice.
