Product Details:
|
Product Name: | Glass Fiber Reinforces Fiberglass Composite Pipes | Color: | Color Customization |
---|---|---|---|
Size: | 20*3.4 25*4.2 32*5.4 40*6.7 50*8.3 63*10.5 | Standard: | Din 8077-8078 |
Application: | Cold Or Hot Water Supply | Durable Years: | 50 Years |
Work Pressure: | PN 25 | Connection: | Hot Melting |
Sample: | Available | ||
High Light: | fiberglass reinforced plastic pipe,fusion ppr pipes |

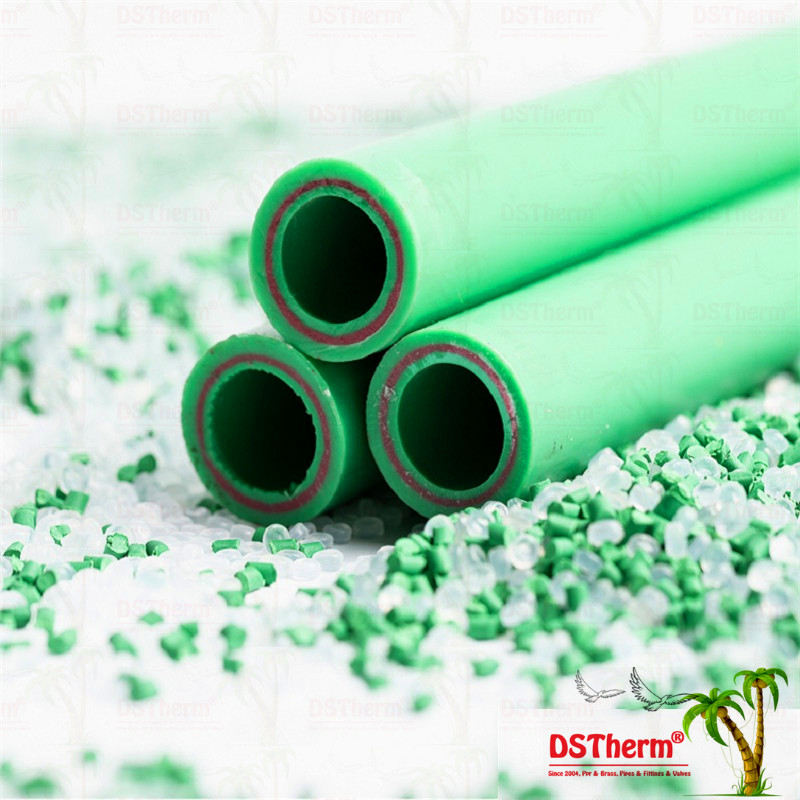

Glass Fiber Reinforces Fiberglass Composite Pipes ISO9001 DIN8077/8078 Color customization size 20-160
PP-R Fiber Composite pipe
OEM Available
Material: PPR HYOSUNG R200P from Korea,
Standard: ISO 15874: DIN8077-8078
Production temperature: -40 - +95°C
Pressure Rating: PN10,PN12.5,PN16 ,PN20
Connection:socket fusion joint,electro fusion joint or transition joint
|
PN 1.25MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa |
Outer Diameter dn(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
20 | 2.0 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 3.0 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.4 |
63 | 5.8 | 7.1 | 8.7 | 10.5 |
75 | 6.9 | 8.4 | 10.3 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15.0 |
110 | 10.0 | 12.3 | 15.1 | 18.3 |
160 | 14.6 | 17.9 | 21.7 | 26.6 |
Items | Index | ||
Pipe Material | Pipe Article | ||
Density | G/cm³20℃ | 0.89-0.91 | |
Heat Transmitting Index | W/m.k(20℃) | 0.23-0.24 | |
Thread Expand Index | Mm/m.k | 0.14-0.16 | |
Flip Thread Mode Mete | W/m²(20℃) | 800 | |
Extend Intendity | Mpa | More than 20 | |
Minitication in Portrait | 135℃, 2h% | Less than 2 | |
Swing and Beat Impact Test | 15J, 0℃, 2H (disrepair rate)% | Less than 10 |
Advantages:
High temperature resistance: the maximum sustained working temperature is up to 70°Cdegrees, the maximum transient temperature is up to 95°C
Heat preservation: low thermal conductivity results in preserving heat
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
Lower installation costs: light weight and easy installation can reduce installation costs
Higher flow capacity: smooth interior walls result in low pressure loss and high volume
Feature
1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years
Applications:
1 ) Cold, hot water supply facilities for public buildings
2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )
3 ) Drinking water production system pipeline networks such as pure water and mineral water
4 ) Air conditioning facility pipeline
5 ) Compressed gas pipeline networks for industry
6 ) Pipeline network for swimming pool
7 ) Pipeline network for solar energy facility
8 ) Agriculture and garden production transporting system
We can supply products of different colors as per customer's request.
