Product Details:
|
Product Name: | PPR Water Pipe | Color: | Color Customization |
---|---|---|---|
Specification: | DN20mm-DN110mm, DN20mm-DN160mm | Standard: | Din 8077-8078 |
Application: | Cold Or Hot Water Supply | Brand Name: | DSTHERM Or OEM |
Thickness: | PN10, PN16, PN20, PN25 | OEM&ODM: | Available |
Sample: | Available | Packaging Details: | Standard Exporting Package |
High Light: | ppr plastic water pipe,ppr plumbing pipe |

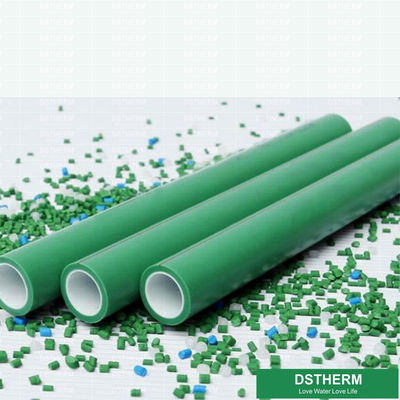

PPR Water Pipee ISO9001, DIN8077/8078 Polypropylene Color customization 20-160mm
Parameters of the PPR Pipe SDR11/S5/PN10 | |||
Nominal Outer Diameter | Diameter | Wall Thickness | Inner Diameter |
20 | 20 | 2.0 | 16.0 |
25 | 25 | 2.3 | 20.4 |
32 | 32 | 2.9 | 26.2 |
40 | 40 | 3.7 | 32.6 |
50 | 50 | 4.6 | 40.8 |
63 | 63 | 5.8 | 51.4 |
75 | 75 | 6.8 | 61.4 |
90 | 90 | 8.2 | 73.6 |
110 | 110 | 10 | 90.0 |
160 | 160 | 14.6 | 130.8 |
Parameters of the PPR Pipe SDR9/S4/PN12.5 | |||
Nominal Outer Diameter | Diameter | Wall Thickness | Inner Diameter |
20 | 20 | 2.3 | 15.4 |
25 | 25 | 2.8 | 19.4 |
32 | 32 | 3.6 | 24.8 |
40 | 40 | 4.5 | 31.0 |
50 | 50 | 5.6 | 38.8 |
63 | 63 | 7.1 | 48.8 |
75 | 75 | 8.4 | 58.2 |
90 | 90 | 10.1 | 69.8 |
110 | 110 | 12.3 | 85.4 |
160 | 160 | 17.9 | 124.2 |
Parameters of the PPR Pipe SDR7.4/S3.2/PN16 | |||
Nominal Outer Diameter | Diameter | Wall Thickness | Inner Diameter |
20 | 20 | 2.8 | 14.4 |
25 | 25 | 3.5 | 18.0 |
32 | 32 | 4.4 | 23.3 |
40 | 40 | 5.5 | 29.0 |
50 | 50 | 6.9 | 36.2 |
63 | 63 | 8.6 | 45.6 |
75 | 75 | 10.3 | 54.4 |
90 | 90 | 12.3 | 65.4 |
110 | 110 | 15.1 | 79.8 |
Product Description
a. Non-conductive: Good insulation, assuring a safe system
b. Smooth surface : Small friction coefficient to ensure the cables go through smoothly
c. Fire resistance: Self-extinguishing, do not support combustion
d. Corrosion Resistance: Resistant to acids, bases and salts, assuring a lower maintenance cost and
a longer performance life
e. Impact strength: Resistant to compression and impact, suitable to be buried in concrete
f. Easy Installation: solvent cement and threading joining
Advantage
1. Sanitary, non-toxic, no heavy metal additives, directly apply to the water supply system.
2. Heat insulation and Saving Energy: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
3. Light weight, high strength and high impact strength.
4. Lower Installation Costs: light weight and good hot-melt performance can reduce installation costs by as much as 50% over metal piping system.
5. Convenient installation, reliable, recycled, environmental protection and safe.
6. Corrosion Resistant: resist chemical matters or electron chemical corrosion.
7 High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
8.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
9. Long service life: more than fifty years under the normal pressure and temperature.
Intended use
For interior hot and cold water distribution systems in buildings and floor & central heating systems, air ducts
PN 10 - cold water distribution and floor heating systems
PN 16 - higher pressure cold water distribution and DHW systems at lower pressures
PN 20 - hot water distribution systems, central heating
