    Plumbing Ppr Composite Pipe Safe Polyethylene Aluminium Perforated Composite Pipe

    Product Details:

    Place of Origin: Zhejiang China
    Brand Name: DSTHERM
    Certification: ISO9001
    Model Number: 20-160mm

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: 4m/PCS polybag
    Delivery Time: 20 days
    Supply Ability: 20days /20 feet container , 35days/40 HQ
    Get Best Price Contact Now

    Detail Information

    Product Name: PP-R Plastic Aluminum Stable Composite Pipe Color: Color Customization
    Size: 20-160mm Standard: Din 8077-8078
    Application: Cold Or Hot Water Supply Pressure: Pn10 Pn12.5 Pn16 Pn20 Pn25
    Temperature: -40---95C, Heat Resistant Function: Plumbing Materials Adapters For Water Supply Sytem
    Length: 4m Or As Your Request
    High Light:

    polyethylene aluminium composite pipe

    ,

    aluminum plastic pipe

    Product Description

    Plumbing Ppr Composite Pipe Safe Polyethylene Aluminium Perforated Composite Pipe

    Plumbing Ppr Composite Pipe Safe Polyethylene Aluminium Perforated Composite Pipe  0



    PP-R plastic aluminum stable composite pipe ISO9001 DIN8077/8078 Color customization 20-160mm





    Product: PP-R Aluminum Composite pipe
    Material: 100% PPR
    Size: 16-160mm
    Certificate:ISO9001
    Standard: ISO15874; DIN8077/8078
    Working place: -40°-95°


    Series SDR9/S4/PN16
    Nominal Outer
    Diameter
    Diameter Wall Thickness Inner Diameter Overall Wall
    Thickness
    Overall Outer
    Diameter
    20mm 20.0 2.3 15.4 3.4 21.9
    25mm 25.0 2.8 19.4 4.0 27.1
    32mm 32.0 3.6 24.8 4.8 34.1
    40mm 40.0 4.5 31.0 5.8 42.3
    50mm 50.0 5.6 38.8 6.9 52.3
    63mm 63.0 7.1 48.8 8.4 65.3
    75mm 75.0 8.4 58.3 9.6 77.8
    90mm 90.0 10.1 70.0 11.5 93.3
    110mm 110.0 13.7 85.8 13.7 114.0







    Series SDR7.4/S3.2/PN20
    Nominal Outer
    Diameter
    Diameter Wall Thickness Inner Diameter Overall Wall
    Thickness
    Overall Outer
    Diameter
    20mm 20.0 2.8 14.4 3.9 21.9
    25mm 25.0 3.5 18.0 4.7 27.1
    32mm 32.0 4.5 23.0 5.7 34.1
    40mm 40.0 5.6 28.8 6.8 42.3
    50mm 50.0 6.9 36.2 8.2 52.3
    63mm 63.0 8.6 45.6 10.0 65.3
    75mm 75.0 10.3 54.4 11.5 77.8
    90mm 90.0 12.3 65.4 13.7 93.3
    110mm 110.0 15.1 79.9 16.6 114.0




    Series SDR6/S2.5/PN25
    Nominal Outer
    Diameter
    Diameter Wall Thickness Inner Diameter Overall Wall
    Thickness
    Overall Outer
    Diameter
    20mm 20.0 3.4 13.2 4.5 21.9
    25mm 25.0 4.2 16.6 5.4 27.1
    32mm 32.0 5.4 21.2 6.7 34.1
    40mm 40.0 6.7 26.6 8.0 42.3
    50mm 50.0 8.3 33.2 9.6 52.3
    63mm 63.0 10.5 42.0 11.8 65.3
    75mm 75.0 12.5 49.8 13.8 77.8
    90mm 90.0 15.0 59.8 16.4 93.3
    110mm 110.0 18.3 73.2 19.8 114.0




    Application fields:

    PP-R stable composite pipe has unique excellent properties. It can be widely used in building water supply systems, heating pipe systems, air-conditioning systems, and domestic hot and cold water piping system and other areas.

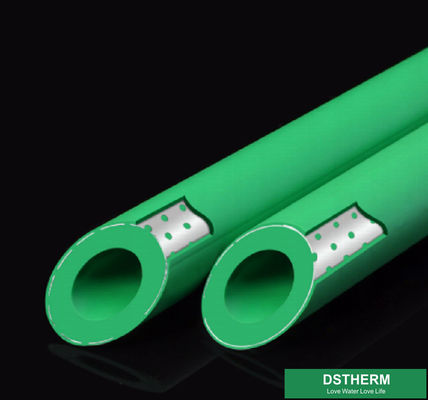

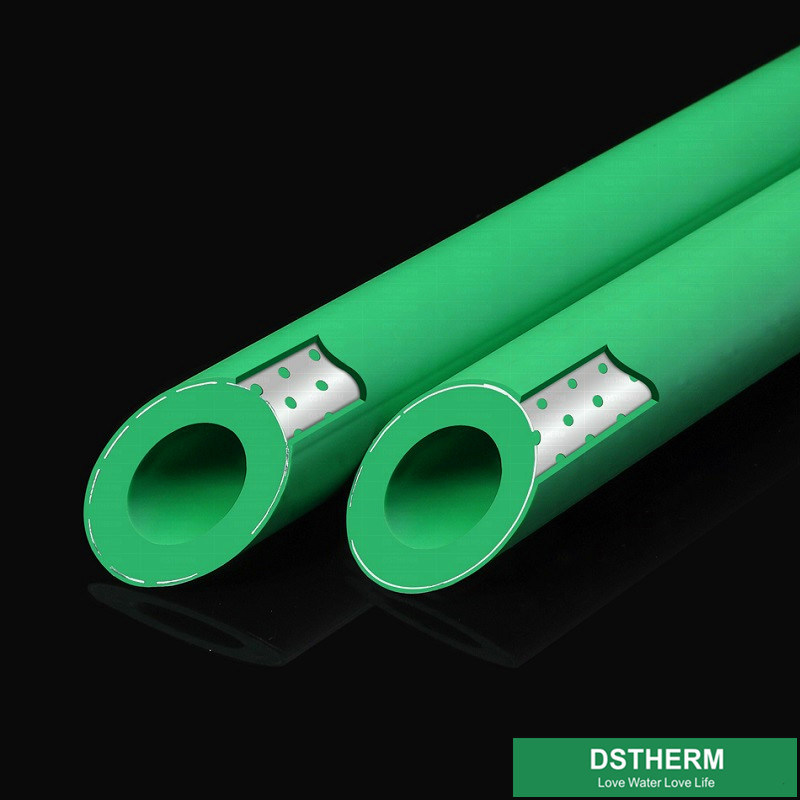

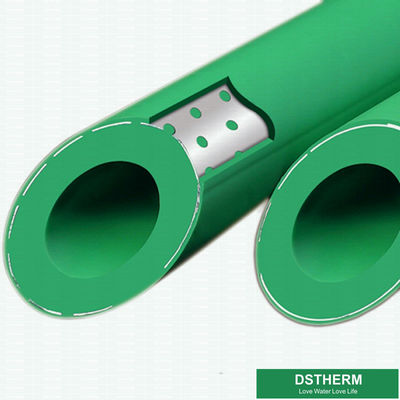

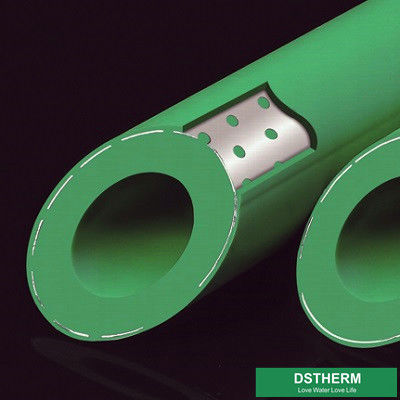

    PP-R aluminum plastic composite pipe is a composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of aluminum core which is longitudinally welded in an overlapping way.



    It has high performance as follows:

    1. Greatly reduced linear expansion coefficient, which is 1/3 of normal PP-R pipe, that keep the pipe being not out of shape.

    2. Excellent performance of oxygen and rays resistance, which avoids bacteria breeding, and protects metal parts from rust-eaten.

    3. Good UV-rays and aging resistance makes the pipe has long service life.

    4. Safe, reliable and convenient connection ways: It adopts hot melt socket connection ways which couples the pipes to be integral whole and assure you of no leakage.

    5. Easily detected by detector when embedded owing to the metal layer in the middle, so that it is very convenient for maintenance in the future.


    Plumbing Ppr Composite Pipe Safe Polyethylene Aluminium Perforated Composite Pipe  1
