    Polypropylene Green Ppr Pipe Accessories Male Threaded Union Size 20-110 Mm

    Product Details:

    Place of Origin: Zhejiang China
    Brand Name: DSTHERM
    Certification: ISO9001
    Model Number: 20-160mm

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 20 days
    Payment Terms: L/C, T/T
    Supply Ability: 20days /20 feet container , 35days/40 HQ
    Get Best Price Contact Now

    Detail Information

    Product Name: PPR Pipe Fittings Union Material: Polypropylene
    Color: Green Specification: 20-110mm
    Standard: ISO15874 And DIN8007/8078 Connection: Welding
    Sample: Available Technics: Casting
    Packaging Details: Standard Exporting Package Application: Cold Or Hot Water Supply
    High Light:

    ppr plumbing fittings

    ,

    plastic pipe accessories

    Product Description

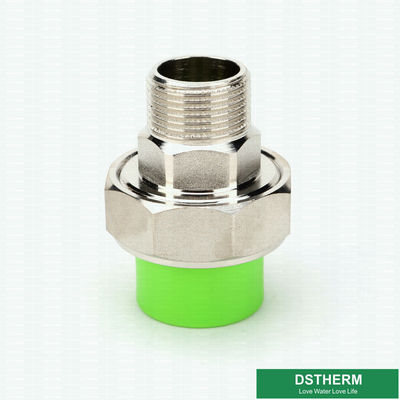

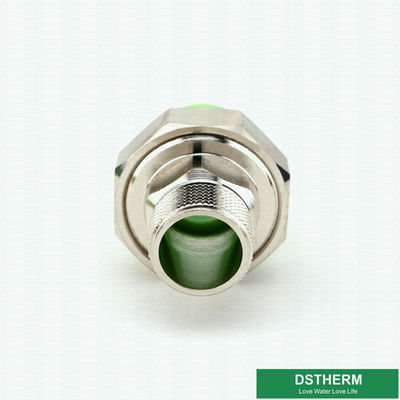

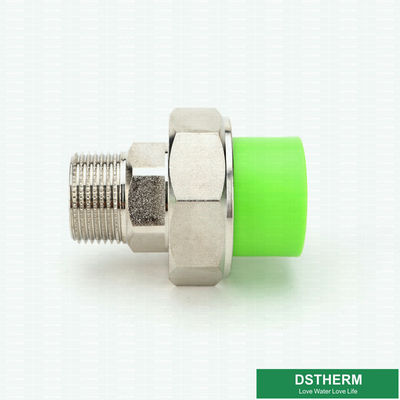

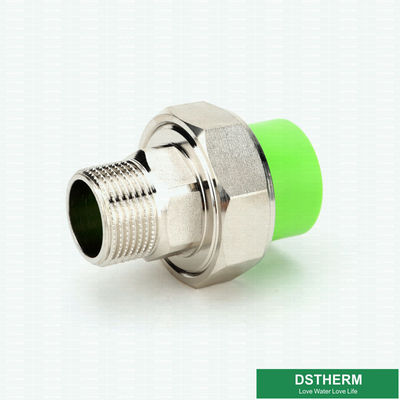

    Polypropylene Green Ppr Pipe Accessories Male Threaded Union Size 20-110 Mm

    Polypropylene Green Ppr Pipe Accessories Male Threaded Union Size 20-110 Mm 0



    DSTHERM Green PPR Pipe Fittings Male Threaded Union Size 20-160mm Polypropylene



    Description


    1. Application
    1) Cold and warm water system
    2) Construction system
    3) Industrial liquids transportation
    4) Swimming pool facilities
    5) Solar plants
    6) Air conditioning system



    1High Temperature Resistance: the maximum sustained working temperature is up to 70 °C,the maximum transient temperature is up to 95°C
    2Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
    3. Corrosion Resistant: resist chemical matters or electron chemical corrosion
    4. Lower Installation Costs: light weight and ease of installation can reduce installation costs
    5. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume
    6. Long Life: more than 50 years under normal conditions more than 50 years under normal conditions
    7. Recycled and Environment-friendly




    Feature
    1. Sanitary & non-toxic;
    2. Corrosion resistant & not scaling;
    3. High temperature resistant & high pressure resistant;
    4. Heat preservation & energy efficient;
    5. Light weight;
    6. Elegant appearance;
    7. Convenient & reliable installation;
    8. Long service life: over 50 years

    Advantages
    1) Lower total installed cost – Lightweight product is easier and faster to handle and install and less heavy equipment is required to lift and position pipe. This can result in reduced installation costs.
    2) Easy to handle –PP and PP-R are lightweight products making handling and positioning pipe fittings easier and safer. Less heavy equipment is needed to unload, handle product on site and position into trenches.
    3) Optimum hydraulic performance – PP-R’s smooth inner skin is resistant to build up and allows optimum hydraulic flow.
    4) Chemical resistance – PP-R pipe fittings are resistant to corrosion by aggressive and saline soils and substances typically found in sewage effluent, including most industrial discharges.
    5) Sensitive to the environment – The material-efficient production reduces the use of raw materials. PP and PP-R pipe fittings are long life products.
    6) Flexibile – PP and PP-R are flexible pipe fittings which have the ability to cope with soil movement and external loading without cracking.


    Application Field
    Potable water pipe networks for cold and warm water installations of residential
    buildings, hospitals, hotels, schools, office buildings and shipbuilding
    Pipe networks for rainwater utilization systems
    Pipe networks for compressed air plants
    Pipe networks for swimming pool facilities
    Pipe networks for solar plants
    Pipe networks in agriculture and horticulture
    Heating pipes for residential housing
    Pipe networks for industry


    For Water Installations


    Temperature
    Service life Safety-factor=1.5
    SDR 11 SDR 9 SDR7.4 SDR 6
    Nominal Pressere
    PN10 PN12.5 PN16 PN20
    Permissible Working Pressure
    20℃ 1 15.0 18.9 23.8 30.0
    10 13.7 17.3 21.7 27.2
    50 12.9 15.9 20.4 25.7
    40℃ 1 10.8 13.6 17.1 21.2
    10 9.2 12.4 16.0 20.2
    50 9.2 11.5 14.5 18.8

    50℃
    1 9.2 10.8 14.5 18.3
    10 8.2 10.5 13.1 16.5
    50 7.7 9.8 12.2 15.4
    60℃ 1 / / 12.2 15.4
    10 / / 11.0 13.8
    50 / / 10.1 12.7
    75℃ 1 / / 9.9 12.3
    10 / / 7.5 9.3
    25 / / 6.1 7.5

    SDR=Standard Dimension Ratio(diameter/wall thickness)
    SDR=d/s(S=Pope series index from ISO 4065)





    Polypropylene Green Ppr Pipe Accessories Male Threaded Union Size 20-110 Mm 1



    Polypropylene Green Ppr Pipe Accessories Male Threaded Union Size 20-110 Mm 2
