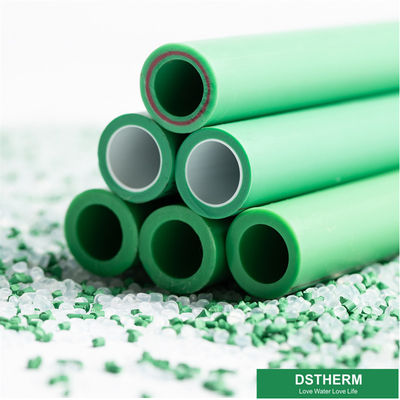

Reinforced PPR Fiberglass Composite Pipe Green Color With Hot Melting Connection

Reinforced PPR Fiberglass Composite Pipe Green Color With Hot Melting Connection

Reinforced PPR Fiberglass Composite Pipe Green Color With Hot Melting Connection

Product Details:

Place of Origin: Shanghai, China
Brand Name: Seefine or OEM
Certification: ISO9001
Model Number: 20-160mm

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 4m/PCS polybag
Delivery Time: 20 days
Supply Ability: 20days /20 feet container , 35days/40 HQ
Contact Now
Detailed Product Description
Product Name: Fiberglass Reinforced Ppr Composite Tube Color: Color Customization
Size: 20-160mm Standard: Din 8077-8078
Application: Cold Or Hot Water Supply Feature: RECYCLABLE
Work Pressure: PN 25 Connection: Hot Melting
Sample: Available





Fiberglass reinforced ppr composite tube ISO9001 DIN8077/8078 Color customization size 20-160





PP-R Fiber Composite pipe

OEM Available

Material: PPR HYOSUNG R200P from Korea,

Standard: ISO 15874: DIN8077-8078

Production temperature: -40 - +95°C

Pressure Rating: PN10,PN12.5,PN16 ,PN20
Connection:socket fusion joint,electro fusion joint or transition joint





PN 1.25MPa PN 1.6MPa PN 2.0MPa PN 2.5MPa

Outer Diameter

dn(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

20 2.0 2.3 2.8 3.4
25 2.3 2.8 3.5 4.2
32 3.0 3.6 4.4 5.4
40 3.7 4.5 5.5 6.7
50 4.6 5.6 6.9 8.4
63 5.8 7.1 8.7 10.5
75 6.9 8.4 10.3 12.5
90 8.2 10.1 12.3 15.0
110 10.0 12.3 15.1 18.3
160 14.6 17.9 21.7 26.6





Items Index
Pipe Material Pipe Article
Density G/cm³20 0.89-0.91
Heat Transmitting Index W/m.k(20) 0.23-0.24
Thread Expand Index Mm/m.k 0.14-0.16
Flip Thread Mode Mete W/m²(20) 800
Extend Intendity Mpa More than 20
Minitication in Portrait 135, 2h% Less than 2
Swing and Beat Impact Test 15J, 0, 2H (disrepair rate)% Less than 10



Advantages:

High temperature resistance: the maximum sustained working temperature is up to 70°Cdegrees, the maximum transient temperature is up to 95°C

Heat preservation: low thermal conductivity results in preserving heat

Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium

Lower installation costs: light weight and easy installation can reduce installation costs

Higher flow capacity: smooth interior walls result in low pressure loss and high volume



Feature
1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years



Applications:

1 ) Cold, hot water supply facilities for public buildings

2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )

3 ) Drinking water production system pipeline networks such as pure water and mineral water

4 ) Air conditioning facility pipeline

5 ) Compressed gas pipeline networks for industry

6 ) Pipeline network for swimming pool

7 ) Pipeline network for solar energy facility

8 ) Agriculture and garden production transporting system

We can supply products of different colors as per customer's request.

Reinforced PPR Fiberglass Composite Pipe Green Color With Hot Melting Connection
