    Product Details:

    Place of Origin: Zhejiang China
    Brand Name: DSTHERM
    Certification: ISO9001 CE
    Model Number: 20-110mm

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Packed by poly bag
    Delivery Time: 10 days
    Supply Ability: 10 days /40 feet container
    Get Best Price Contact Now

    Detail Information

    Product Name: PPR Plumbing Pipe Color: Color Customization
    Size: 20-160mm Connection: Welding
    Application: Cold Or Hot Water Supply Pressure: Pn25, Pn20, Pn16, Pn12.5
    Thickness: PN10, PN16, PN20, PN25 Certificate: ISO9001,ISO 14001
    Shipping: By Sea Or By Air Packaging Details: Standard Exporting Package
    High Light:

    ppr plastic pipe

    ,

    ppr plumbing pipe

    Product Description

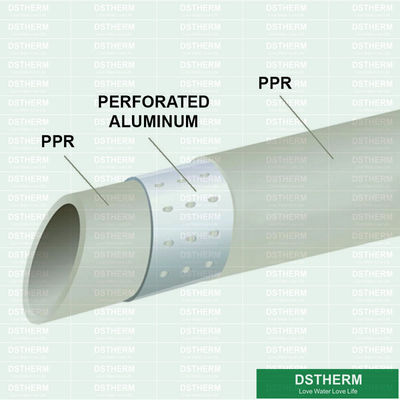

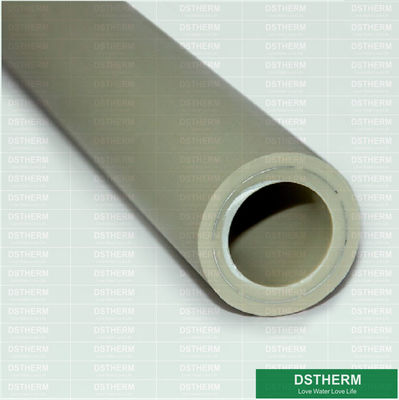

    Green / White Color Plastic PPR Perforated Aluminum High Temperature Resistance

    Green / White Color Plastic PPR Perforated Aluminum High Temperature Resistance 0

    PPR Plumbing Pipe ISO9001, DIN8077/8078 Polypropylene Color customization 20-160mm


    Product Information



    · 1. Material:PPR--original material from Korea

    · 2. Size:20mm to 160mm

    · 3. Color: green /white/coffee or on request

    · 4. Standard:DIN

    · 5. the reasonable price with excellent quality

    · 6. quick delivery settle for the sales planning of customers


    Parameters of the PPR Pipe SDR11/S5/PN10
    Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
    20 20 2.0 16.0
    25 25 2.3 20.4
    32 32 2.9 26.2
    40 40 3.7 32.6
    50 50 4.6 40.8
    63 63 5.8 51.4
    75 75 6.8 61.4
    90 90 8.2 73.6
    110 110 10 90.0
    160 160 14.6 130.8



    Parameters of the PPR Pipe SDR9/S4/PN12.5
    Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
    20 20 2.3 15.4
    25 25 2.8 19.4
    32 32 3.6 24.8
    40 40 4.5 31.0
    50 50 5.6 38.8
    63 63 7.1 48.8
    75 75 8.4 58.2
    90 90 10.1 69.8
    110 110 12.3 85.4
    160 160 17.9 124.2




    Parameters of the PPR Pipe SDR6/S2.5/PN20
    Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
    20 20 3.4 13.2
    25 25 4.2 16.6
    32 32 5.4 21.2
    40 40 6.7 26.6
    50 50 8.3 33.4
    63 63 10.5 42.0
    75 75 12.5 50.0
    90 90 15.0 60.0
    110 110 18.3 73.4



    Applications
    1) Cold and hot water supply systems for civil and industrial constructions, e.g. in
    residential buildings, hospitals, hotels, school and office buildings, ship building
    2) Drinking water systems and food industry pipe works
    3) Central air conditioning system
    4) Irrigating system for gardens and green houses
    5) Public and sport facilities such as swimming pools and stadiums
    6) For rainwater utilization systems

    Advantages:
    1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
    2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
    Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
    3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.
    4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
    5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
    6, Long Life: more than 50 years under normal conditions.
    7, Recycled and Environment-friendly.

    Payment term :LC / TT .
    Delivery time : 10 days /40 feet container
    Samples lead time: 3-7 days
    MOQ: 100-4000pcs
    Package: pcs/polybag, 4 meters/tube or as client's request
